Oxygen Probe

Probe for oxygen concentration measurement and carbon potential calculation

Oxygen Probe Features

The probe is applicable for case hardening in gas, for heat treatment in protective gas, for carbonitriding as well as for measurement of endothermic gas properties.

The probe is intended for direct gas atmosphere installation and is installed via screw connection (1“ male thread).
Length from 650 to 1000 mm and diameter from 22 and 26,9 mm are available.


Characteristics:

  • High measuring accuracy
  • Short response time
  • High durability



Technical Data
  • Output: 0 - 1200 mV
  • Installation depth: at least 50 mm in the furnace chamber
  • Accuracy: ± 0.05 %
  • Weight: 2 - 3 kg, depending on length
  • Response time: < 1 second
  • Reference air: ambient air < 60°C, flow rate approx. 20 l/ h
  • Purge air: ambient air < 60°C, flow rate approx. 200 l/ h
  • Protective pipe: Heat-resisting steel (1.4841) for the protec tion of the sensor from heat- and/or mechanical stress
  • Operating temperature: 760 °C - 1100 °C
  • Thermocouple: T ype S or without


Accessories:

  • Connection adapter for mounting parts of other manufacturers (option)
  • Documentation


Please check if the operational conditions are in accordance with the aforementioned data. If deviations are existent, ask for consultation in order to check the conditions and be adapted if applicable.

The following types of probe are available:

Art-Nr. Type of probe
SE-CP-226500 Length: 650 mm; diameter: 22 mm, without thermocouple
SE-CP-226501 Length: 650 mm; diameter: 22 mm, integrated thermocouple type S
SE-CP-227500 Length: 750 mm; diameter: 22 mm, without thermocouple
SE-CP-227501 Length: 750 mm; diameter: 22 mm, integrated thermocouple type S
SE-CP-228500 Length: 850 mm; diameter: 22 mm, without thermocouple
SE-CP-228501 Length: 850 mm; diameter: 22 mm, integrated thermocouple type S
SE-CP-2210000 Length: 1000 mm; diameter: 22 mm, without thermocouple
SE-CP-2210001 Length: 1000 mm; diameter: 22 mm, integrated thermocouple type S
SE-CP-266500 Length: 650 mm; diameter: 26,9 mm, without thermocouple
SE-CP-266501 Length: 650 mm; diameter: 26,9 mm, integrated thermocouple type S
SE-CP-267500 Length: 750 mm; diameter: 26,9 mm, without thermocouple
SE-CP-267501 Length: 750 mm; diameter: 26,9 mm, integrated thermocouple type S
SE-CP-268500 Length: 850 mm; diameter: 26,9 mm, without thermocouple
SE-CP-268501 Length: 850 mm; diameter: 26,9 mm, integrated thermocouple type S
SE-CP-2610000 Length: 1000 mm; diameter: 26,9 mm, without thermocouple
SE-CP-2610001 Length: 1000 mm; diameter: 26,9 mm, integrated thermocouple type S


Electrical connection takes place via 4-pole LEMO connector.
Other connection adapters on request.

Downloads

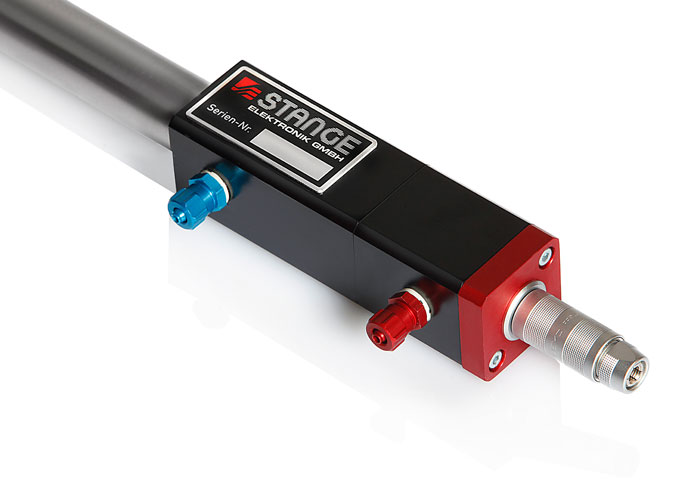

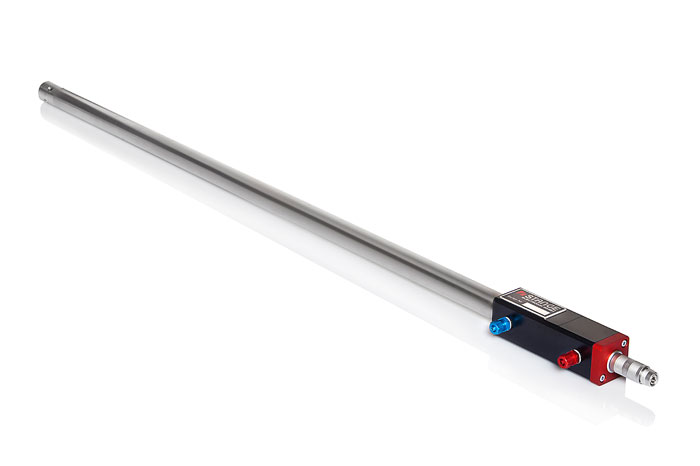

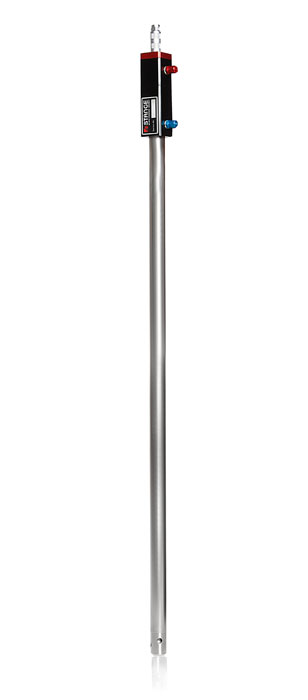

Product Photos
